visualsc: SCTransition Class Reference

The class represents a transition in a state-chart Data-Model. More...

#include <sctransition.h>

Inherits SCItem.

Collaboration diagram for SCTransition:

Collaboration graph

[legend]

List of all members.

Signals
void	selected ()
void	unselected ()
Public Member Functions
	SCTransition (QObject *parent)
	~SCTransition ()
virtual IAttributeContainer *	getAttributes ()
void	setAttributeValue (QString key, QString value)
QString	getAttributeValue (QString key)
void	writeSCVXML (QXmlStreamWriter &sw)
Public Attributes
TransitionAttributes	attributes

Detailed Description

The class represents a transition in a state-chart Data-Model.

The transition does not contain children elements. The transiton does contain a public attribute container as well as convenience methods to accessing the attributes. Since te attribute container is public, attributes can be accessed directly.

The transition holds a reference to the target state.

Constructor & Destructor Documentation

SCTransition::SCTransition ( QObject * parent )

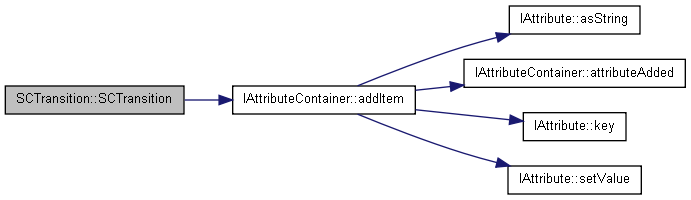

Here is the call graph for this function:

SCTransition::~SCTransition ( )

Member Function Documentation

IAttributeContainer * SCTransition::getAttributes ( ) [virtual]

Implements SCItem.

QString SCTransition::getAttributeValue ( QString key )

Here is the call graph for this function:

void SCTransition::selected ( ) [signal]

void SCTransition::setAttributeValue	(	QString	key,
		QString	value
	)

Here is the call graph for this function:

Here is the caller graph for this function:

void SCTransition::unselected ( ) [signal]

void SCTransition::writeSCVXML ( QXmlStreamWriter & sw )

Here is the caller graph for this function:

Member Data Documentation

TransitionAttributes SCTransition::attributes

The documentation for this class was generated from the following files:

C:/Users/David/Documents/QtProjects/visualsc/scdatamodel/sctransition.h
C:/Users/David/Documents/QtProjects/visualsc/bin/debug/moc_sctransition.cpp
C:/Users/David/Documents/QtProjects/visualsc/scdatamodel/sctransition.cpp
